Blue Seal GP518-B/LS/CB/RB 1200mm Gas Griddles

• Configurations possible:

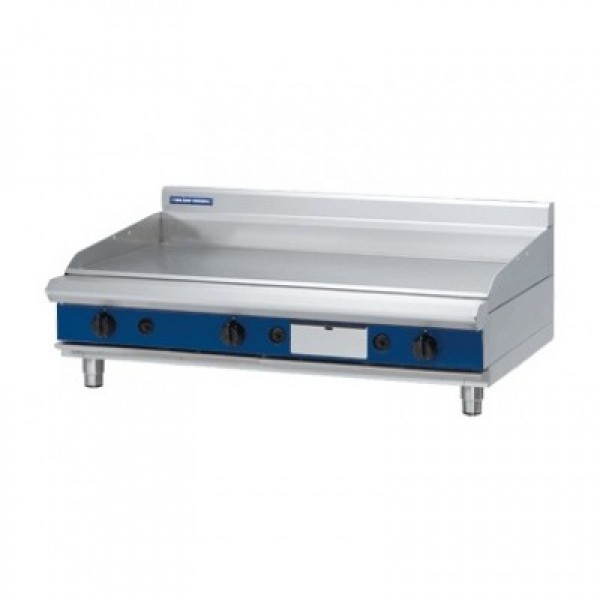

- GP518-B: Gas griddle - bench model
- GP518-LS: Gas griddle - leg stand

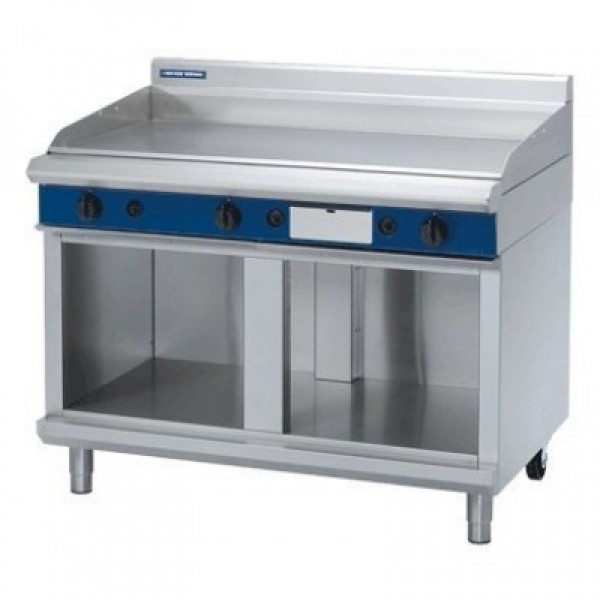

- GP518-CB: Gas griddle - cabinet base (racking kit not included)

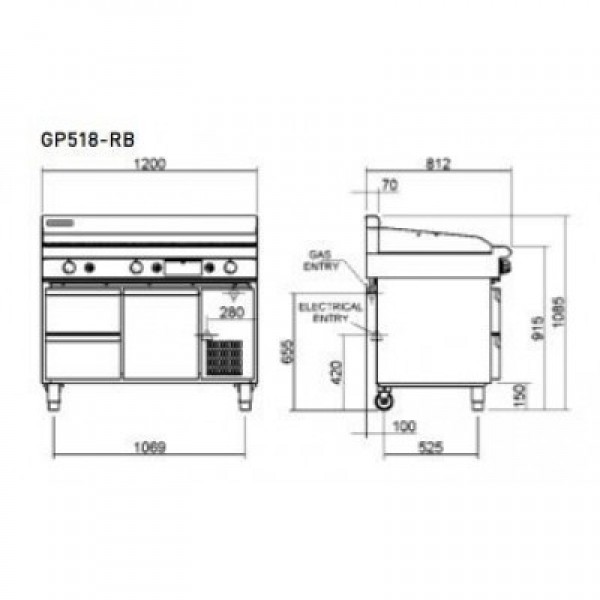

- GP518-RB: Gas griddle - refrigerated base, 2 x 1/1GN drawers / 1 x 1/1GN door
• 20mm thick machined top plates standard
• Optional ribbed plate sections
• Optional mirror finish hard chrome plates
• 2.5mm thick stainless steel splash guards sides and rear
• 2.0mm thick grease channel
• Three 10.3kW 3 bar even heat burners with three thermostatic controls
• Full pilot and flame failure protection with piezo ignition
• Welded hob surround with 1.5mm stainless steel bull nose
• Side panels 1.2mm stainless steel
• Splashback 1.2mm stainless steel
• Enamelled control panel
• Stainless steel grease drawer
• Overlapping finish at front and rear of plate for easy clean

Cabinet base (supplied as -CB model)
• Fully modular for match suite finish
• Double skin 0.9mm stainless steel interior and exterior
• Optional GN 1/1 4 position racking kit (1 or 2 cabinet bays)
• Up to eight 65mm GN 1/1 capacity
• 63mm dia. heavy-duty 1.2mm stainless steel legs with two adjustable feet at front and two rollers at rear

Leg stand (supplied as -LS model)
• Fully modular for matched suite finish
• Framed top for connection to Griddle
• 63mm dia. heavy-duty 1.2mm stainless steel legs with two adjustable feet at front and two rollers at rear
• Fully modular framed stand shelf with 0.9mm stainless steel finish
• Suitable for rear or through shelf gas connection to Griddle
• Quick assembly design

Refrigerated base (supplied as -RB model)
• Self contained suite matched modular base
• Ventilated system with R134a refrigerant
• -2° to + 8°C temperature (Tropical Climate rated)
• Two GN 1/1 drawers
• 100mm deep pan capacity
• Heavy-duty European telescopic drawer guides
• Magnetic drawer gaskets (replaceable without tools)
• 50mm fully foamed CFC free insulation
• Stainless steel exterior and interior
• Anti-corrosion treated evaporator
• No condensate drain required
• 63mm dia. heavy-duty 1.2mm stainless steel legs with adjustable feet
• Condensing unit removable through front of unit for service
• Easy clean interior

Controls
Griddle
• Separate left, centre, and right side heat zones
• Three 90-300°C thermostats
• Large easy use control knobs - heat resistant reinforced
• Easy view control settings on knobs
• Flame failure pilot burners
• Piezo ignition to each pilot burner
• Over-temperature safety cut-outs
Refrigerated Base
• Digital control electronic thermostat
• Automatic defrost
• Automatic evaporation of defrost water
• -2° to +8°C temperature range

Cleaning and Servicing
• All models with easy clean stainless steel external finish
• Plate is finished front and rear with overlap construction to remove cleaning traps
• Control service and gas conversion through front of unit
• Burner service requires plate removal
• Refrigerated Base condenser removable through front of unit
