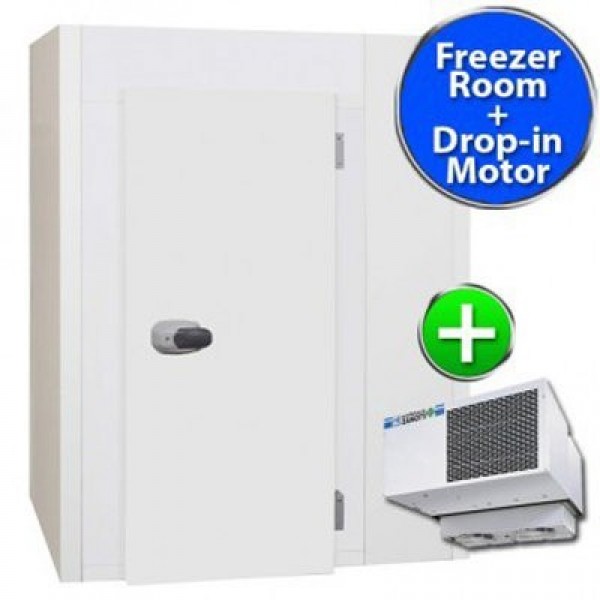

Bromic Matrix II - BUNDLE - Heavy Use - Modular Freezer with heated door 1.8 x 1.4 - Drop In MOTOR
Designed for maximum safety and efficiency, Scalable and fully transportable system, Unique Cam Lock modular construction.

• Negative temperature freezer only
• Heated door
• Pressure release valve
• Deluxe door w/Stainless Steel kickplate
• Hydraulic door closer mechanism
• Bell
• Floor covering

• No drainage required - unit incorporates condensate vaporisation system
• Reduced electrical supply required due to hot gas defrost on all models
• Coldroom bulkhead light and prewired connection supplied with each unit
• Vertical condenser discharge lending the unit to ceiling cavity hot air disposal
• Digital controller incorporating anti-short cycle timer and defrost termination
• Three pin plug fitted to all units
• Prewired for door sensor (and door heater on low temperature models)
• (drainage may be required for certain applications/areas - POA)

Motor Description:
• Includes Refrigeration System with 1690W power
• Digital controller incorporated anti short cycle timer and defrost termination
• No drainage required
• Reduced electrical supply required due to hot gas defrost on all models
• R404A refrigerant used

BSB225T
Capacity (watts): 1690W
Temperature range (°C): -5 to -25°C
Max ambient temp (°C): 45°C
Run/Full-Load amps (amps): 7.7/21.1A
External dimensions: Refer to product brochure
Defrost type: Hot Gas
Type of control: Electronic
Temperature display: Digital
Interior light: Yes
Gross weight (kg): 87kg
Refrigerant: R404a
Single phase required: Yes

M2FR1814F
External width (mm) x depth (mm): 1800 x 1400
Volume (cubic metre): 4.28m3
Internal height (mm): 2230
External height (mm): 2400
Panel thickness (mm): 85
Door opening (h x w): 1900 x 800
