Tungsten Smart-Heat Gas Heater is a designed, cost-conscious product range that does not sacrifice aesthetics for function. The patented direct ignition system, never before seen on outdoor gas radiant heater, ensures a reliable start and effective operation.
To ensure safe usage, the Tungsten Smart-Heat is fitted with a "Flame failure safety shut off control" turning off the unit instantaneity.

• LPG and Natural Gas available
• 3 & 5 tiles versions available

3 Tiles
• Five length options for different ceiling heights - 3.2m, 3.4m, 3.6m, 3.8m, 4m - unit must be mounted 2.5 off the ground
• Heat output (on LPG and NG): 25Mj
• Approx. area heated (m²): 15
• Gas connection: 3/8" SAE / 1/2" NPT Female
• Electrical Connection: 240V, 3-pin insulated plug / 110V, 3-pin insulated plug
• Dimensions (mm): 490W x 464H x 428D
• Min. distance to combustible materials: Side: 1100mm; Above (to ceiling): 1100mm if without heat detector OR 350mm if with heat deflector
• Mounting heigh requirement to ground: Wall mount: 2000mm; Ceiling pole mount: 250mm
• Weight (kg): 14

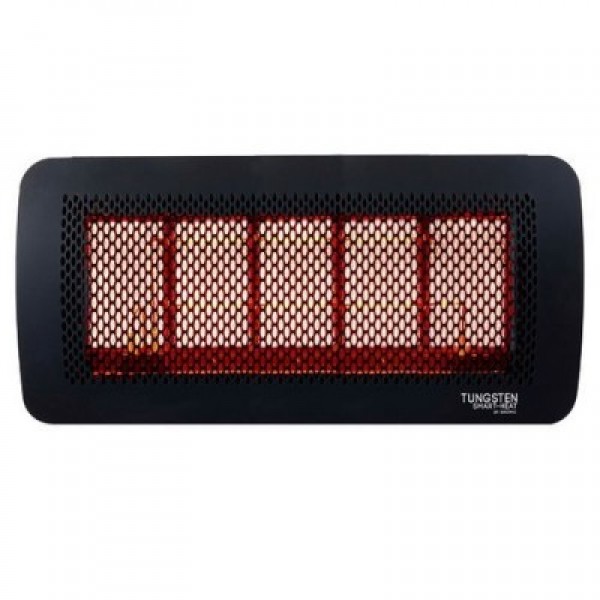

5 Tiles
• Five length options for different ceiling heights - 3.2m, 3.4m, 3.6m, 3.8m, 4m - unit must be mounted 2.5 off the ground
• Heat output (on LPG and NG): 42Mj
• Approx. area heated (m²): 20
• Gas connection: 3/8" SAE / 1/2" NPT Female
• Electrical Connection: 240V, 3-pin insulated plug / 110V, 3-pin insulated plug
• Dimensions (mm): 646W x 464H x 428D
• Min. distance to combustible materials: Side: 1100mm; Above (to ceiling): 1100mm if without heat detector OR 350mm if with heat deflector
• Mounting heigh requirement to ground: Wall mount: 2000mm; Ceiling pole mount: 250mm
• Weight (kg): 18

*Must only be installed by a licensed technician.
Must complete "pre-installation checklist before installing". The temperature will not exceed 65°C above the ambient temperature at specified distance. Please consult material manufacturer for temperature ratings and suitability. Bromic Heating takes no responsibility for material compliance.
Installation must be performed in accordance with AS5601 installation code (or relent standard) and must comply with any additional jurisdictional requirements. Bromic takes no responsibility for incorrect or non-compliant installations.*
